Pleated Filter Bags

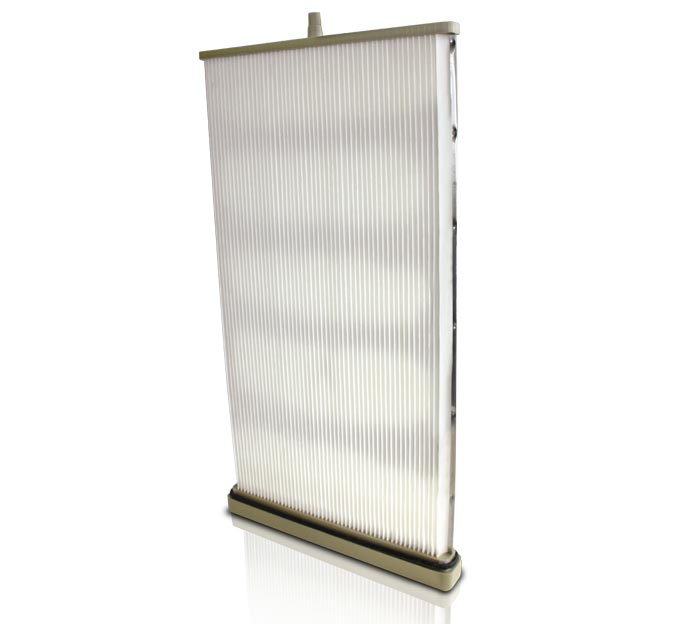

Trumpf Filter
Trumpf Filter

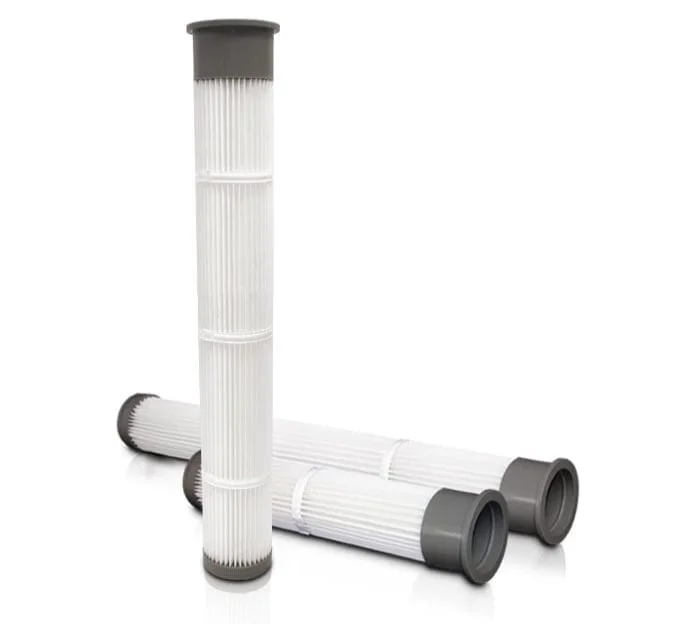

Pleated Filter Bags

0.00

Pleated filter bags are the first major breakthrough in fabric filtration since the introduction of PTFE membranes.

Add To Cart

As the name suggests, the filter bag is pleated to provide up to three times the filtration surface area of a conventional sock on a cage that it replaces. Manufactured from spun bonded polyester filter media and polyurethane tops with either polypropylene or steel cores, the pleated bag comes in a one piece construction for ease of installation and maintenance.

A great deal of research, development and field testing has taken place to perfect a bag that will operate at elevated temperatures. The number of pleats, depth of pleats, selection of filter media, number and type of bands, core velocities and cleaning system must all be taken into consideration when selecting the right pleated bags.

Upgrading existing baghouses to increase through-put has been a major success story for Filtercorp and the pleated bag, with many installations running in their 10th year. New baghouses designed around the pleated bag save space as well as cost with reduced operating costs and downtime. Pleated filter bags increase filtration surface area up to 300%. Custom sizes can be made as required to replace existing socks on cages. Range of standard sizes in stock as below.


Pleated Filter Bag Sizes

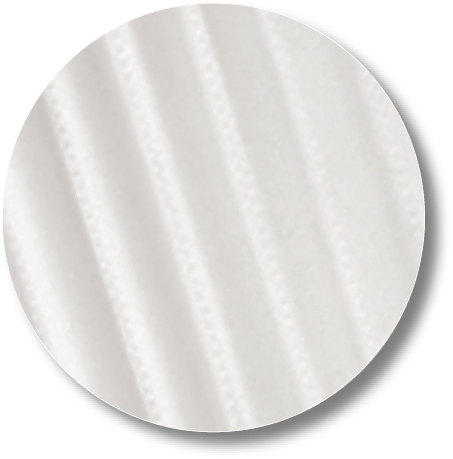

Close up view showing high efficiency 909 FC pulse pleat media.

Close up view showing high efficiency 909 FC pulse pleat media.



Pleated Bag Sizes
120 Ø x 2.0m (L) Bottom loader. Suit Mikropul,Vibco, etc.
124 Ø x 2.0m (L) Top loader. Suit any collector with 122-126 Ø tube sheet hole.
154 Ø x 0.5m (L) Suit vacuum cans
154 Ø x 1.0m (L) Silo vents and vacuum cleaners.
154 Ø x 2.0m (L) Standard Filtercorp filter bag size.
1.0 (L) x 0.6m (W) Cell pleat. Suit DCE Dalamatic.

We can now supply 154 x 3.0 mt one piece bags for spray driers and 208 x 4.0 mt for CIP systems. We can offer pulse pleats with solid stainless steel joiners for requirements longer than 6.0metres.

All Filtercorp pleated bags are now supplied with PTFE impregnated filter media and sonically welded bands.
