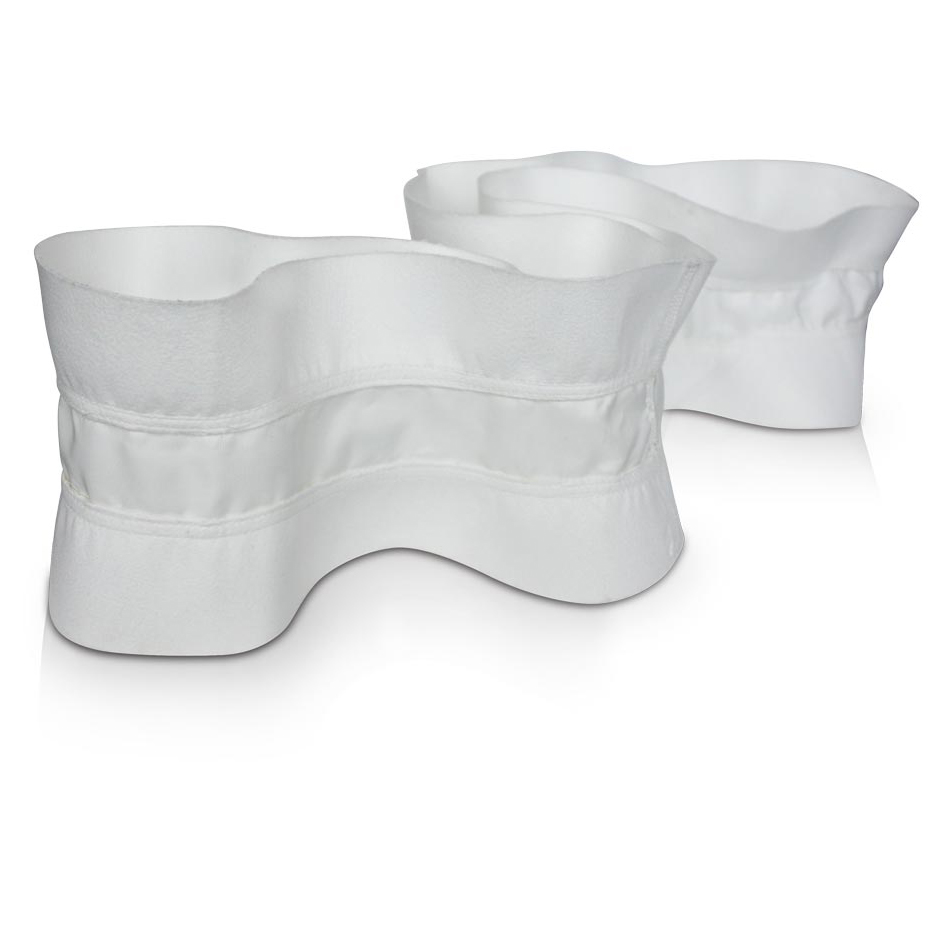

Round Flanged Connector


Round Flanged Connector

0.00

Our highly skilled manufacturing team can create a connector for almost any need. We have plenty of different filter media dependant on your requirements.

Add To Cart

Please refer to the chart below for the filter media available:

Media Type Description
Seeflex 040E Seeflex 040E has no memory so will not fracture as a result of constant flexing.
Temperature Range: -25-110°C
Surge Temperature: 120°C
Material Resistance: 1010 Ω
Material: Clear ether based polyurethane.
FDA Compliant: CFR 177.1680 & 177.2600
EU Approved: EC 1935/2004, 2023-2006, 2002/72, 10/2011 & USDA & 3A (20-).
Seeflex 020E Seeflex 020E has no memory so will not fracture as a result of constant flexing.
Temperature Range: -25-80°C
Surge Temperature: 100°C
Material Resistance: 1010 Ω
Material: Clear ether based polyurethane.
FDA Compliant: CFR 177.1680 & 177.2600
EU Approved: EC 1935/2004, 2023-2006, 2002/72/EC, 10/2011 & USDA & 3A (20-).
Seeflex 040AS Seeflex 040AS is used in aplications with dust explosion hazardous areas. It has no memory so will not fracture as a result of constant flexing.
Temperature Range:
-25-95°C
Material Resistance: 108 Ω
Material: Clear ether based polyurethane with anti-static infusion.
FDA Compliant: CFR 177.1680 & 177.2600
LM4 Perfect when some breathability is required to alleviate pressure. Used for higher temperature environments.
Max. Operating Temperature: 130°C continuous
Surge Temperature: 120°C
Air Permeability: 0.25-0.5 (cm3/cm2/sec@125pa)
FDA Compliant: CFR 177.1680 & 177.2600
Kevlar Kevlar is suitable for over pressure and potentially explosive applications, as well as food processing.
FDA Compliant: CFR 21 177.1632
Teflex Suitable for extreme temperatures and highly resistant against alkalis/acidic/caustic products. Can be used on products across the full PH scale (either caustic or acid)
Continuous Service Temperature: 260°C
Short Term Surges Temperature: 280°C
Air Permeability: 0.6 (cm3/cm2/sec@125pa)
FDA Compliant: CFR 21 177.1150
