Filtalon Compact Filter − F7

P/N 40041
P/N 40044
P/N 40041
P/N 40044

Filtalon Compact Filter − F7

0.00

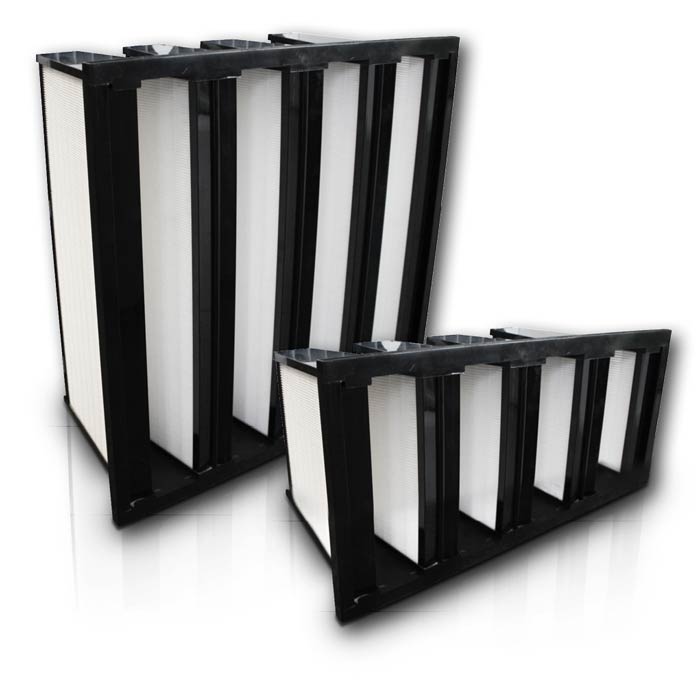

Filtalon compact filter designed for filtration in air handling units with high airflow rates (up to 5000m³/hr per filter) and long service.

Add To Cart

Constructed from high-performance filter media manufactured from shatterproof, synthetic polypropylene fibers and encased in extremely stable ultrasonically welded housing.

Suitable for hospitals, pharmaceutical and food production facilities, offices and the fine mechanical industry. Compact filters are dual directional and can be fastened to existing holding frames or channel installations.

Specifications
Part Number P/N 40041 P/N 40044 Units

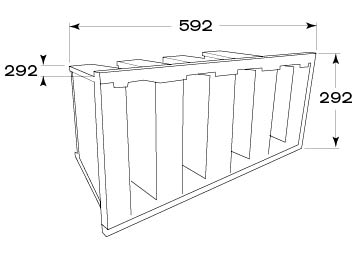

Dimensions 592 x 592 x 292 592 x 292 x 292 mm
Number of Pockets 4
Fibre Polypropylene
Media Efficiency F7 F7
Initial Pressure Drop 85 85 Pa
Final Pressure Drop 300 300 Pa
Nominal Airflow 340 1700 m³/hr
Temperature 70 ºC
Conforms To EN 779: 2012 EN 779: 2012
FDA Compliance FDA CFR21-FDA part 177 FDA CFR21-FDA part 177
