Premium Pocket Bag Filters − F6 & F7


Premium Pocket Bag Filters − F6 & F7

0.00

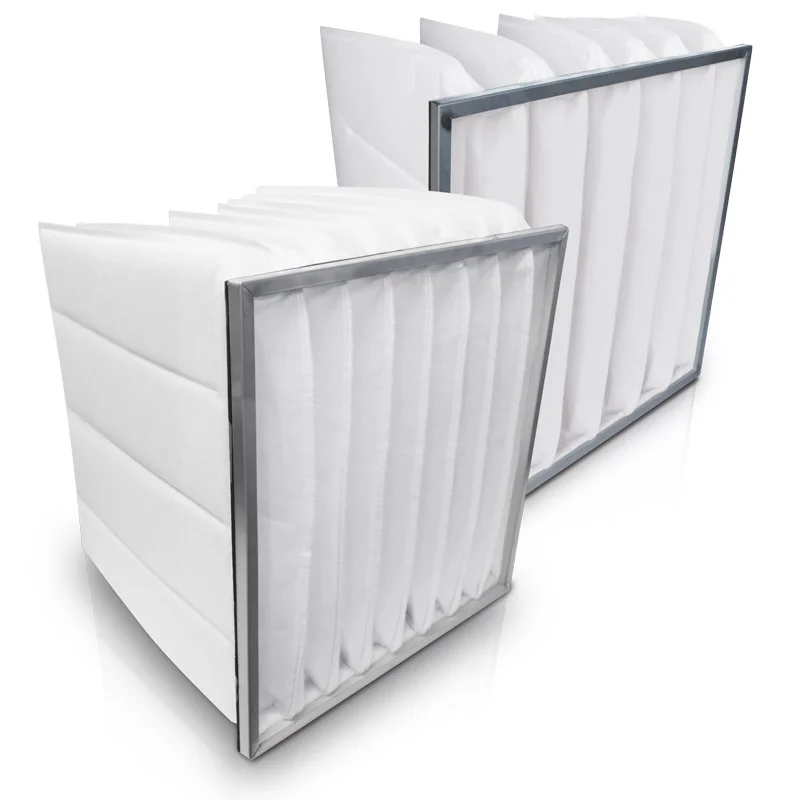

Filtalon F6 & F7 premium pocket bag filters are designed with 6 rigid pockets for high volume dust holding capacity, ensuring total surface area usage.

Add To Cart

This allows higher dust load capacity resulting in longer life. Featuring a robust stainless steel frame, the F6 is extensively used in food and beverage manufacturing processes.


Specifications
Pocket Bag Filter - F6 Units
Filter Media Efficiency F6

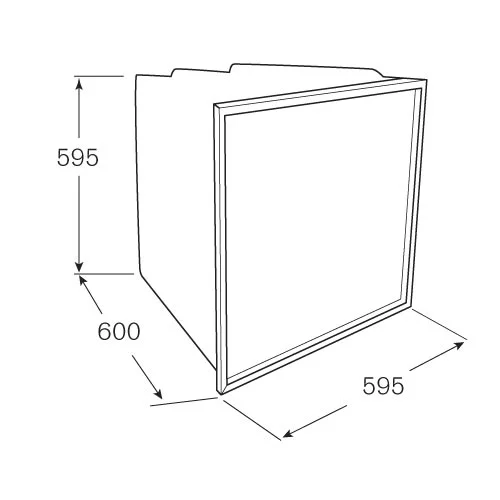

Bag Size 595 x 595 x 600 mm
Yarn Monofilament
Rated Airflow
per Unit at Test
3400 m³/h
Net Effective Filtering Area at Test 4.1

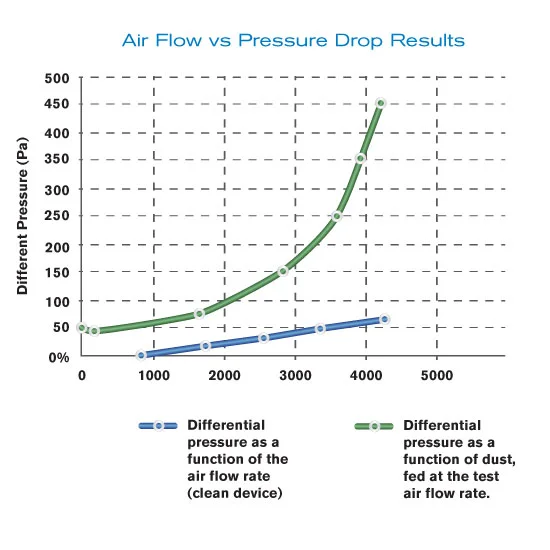

Initial Pressure Loss
(at rated airflow )
50 Pa
Recommended Final Pressure Loss 450 Pa
Average Arrestance 97
Dust Holding Capacity Per Bag @ 450 Pa 809 g/m²
Temperature Resistance 100º - surge 120º ºC
