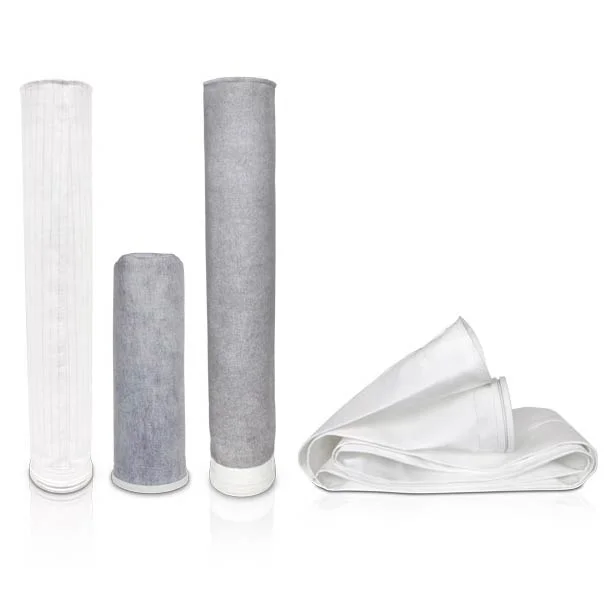

Dust Filter Bags
Dust Filter Bags
For over 35 years, Filtercorp has been designing and manufacturing quality filter bags and sleeves for original equipment manufacturers and end user baghouses.
It is through intense product development over 35 years that Filtercorp has developed a unique combination of deniers and scrims to ensure we offer very high filtration efficiencies with superior dust release.
To coincide we offer a full range of filter media ranging from standard polyester, polypropylene and nomex, through to exotic high temperature Teflon and glass fibre filter media, and everything in between. Filtercorp cover virtually any style of filter bag, pulse jet top and bottom design systems, reverse air and all shaker models.
Our range of filter media are sourced from world leading filter media manufacturers and then manufactured into filter bags at our Auckland and Christchurch facilities. They are available in the following fibres:
|Filter Media Operating Temperatures|
|Polypropylene||up to 110º||ºC|
|Homopolymer Acrylic||up to 125º||ºC|
|Polyester||up to 150º||ºC|
|Aramid||up to 204º||ºC|
|PTFE||up to 260º||ºC|
|Glass||up to 260º||ºC|
- Micro denier needlefelts with efficiencies to 99.99% @ 1 micron *
- Armourtex PTFE membrane on needlefelt or woven cloth with eficiencies to 99.997% @ 0.3 micron *
- Other speciality fibres available on request
- Fabrics available in woven, needlefelt and spun bonded.
* The efficiencies quoted are relative to filtration velocity and particle size distribution. For further information contact us.
Filter Media Specification Sheets
|Filter Media||Description||Weight||Surface Finish||Download|
|FM1DRF||Polyester multi-filament scrim supported needlefelt||550gm/m²||Heat set & singed one side|
|FM1G||Polyester multi-filament scrim supported needlefelt||550gm/m²||PTFE membrane|
|FM2||Polypropylene multi-filament scrim supported needlefelt||500gm/m²||Heat set & singed one side|
|FM35||Homopolymer Acrylic Multifilament scrim supported needlefelt||500gm/m²||Heat set & singed one side|
|MDF400E||Polyester multifilament scrim supported needlefelt||400gm/m²||Heat set & singed one side|
|MDF400G||Polyester multifilament scrim supported needlefelt, anti-static||400gm/m²||PTFE membrane|
|FM4G||Polyester multi-filament scrim supported needlefelt||550gm/m²||PTFE membrane. Heat set & singed one side|
|MDF550E||Polyester multifilament scrim supported needlefelt, anti-static||550gm/m²||Heat set & singed one side|
|APEX 750G||Polyester multifilament scrim supported needlefelt||550gm/m²||PTFE membrane|
|FM6AR||Nomex multi-filament scrim supported needlefelt||500gm/m²||Heat set & singed one side|
|FM6G||Nomex needlefelt||550gm/m²||PTFE laminated|
