Premium Pocket Bag Filters − F6 & F7
Premium Pocket Bag Filters − F6 & F7
$0.00

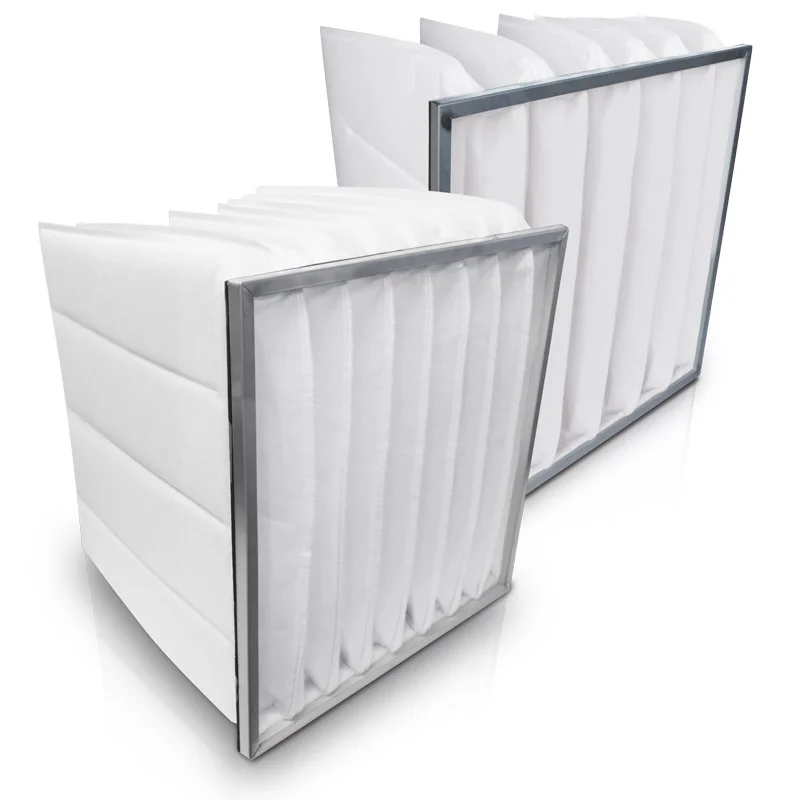

Filtalon F6 & F7 premium pocket bag filters are designed with 6 rigid pockets for high volume dust holding capacity, ensuring total surface area usage.
This allows higher dust load capacity resulting in longer life. Featuring a robust stainless steel frame, the F6 is extensively used in food and beverage manufacturing processes.
Specifications | Pocket Bag Filter - F6 | Units | |||
---|---|---|---|---|---|
Filter Media Efficiency | F6 | ||||

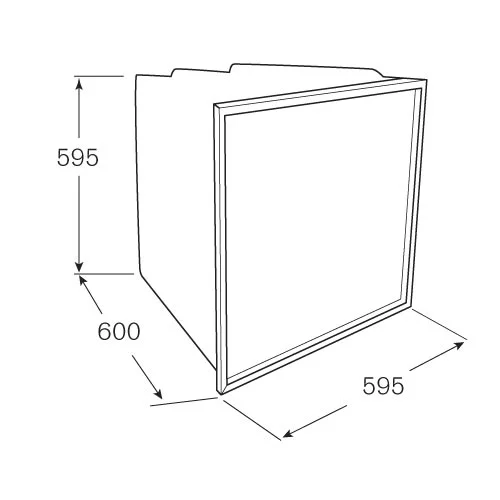

Bag Size | 595 x 595 x 600 | mm | |||
Yarn | Monofilament | ||||
Rated Airflow per Unit at Test |
3400 | m³/h | |||
Net Effective Filtering Area at Test | 4.1 | m² | |||

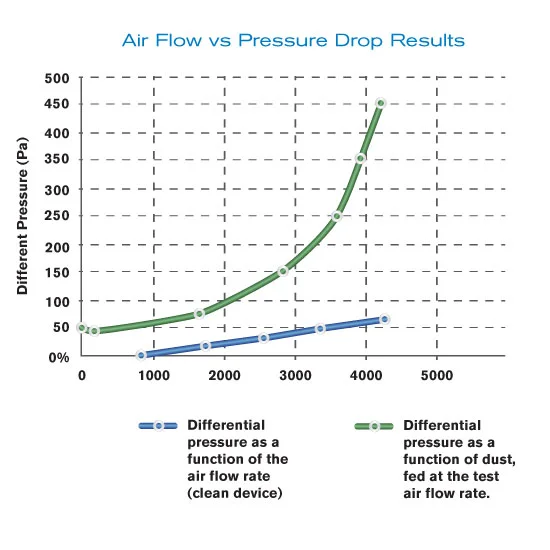

Initial Pressure Loss (at rated airflow ) |
50 | Pa | |||
Recommended Final Pressure Loss | 450 | Pa | |||
Average Arrestance | 97 | Temperature Resistance | 100º - surge 120º | ºC | |
